300V 20A Power Terminal Blocks , Pitch 10.00mm High Current Barrier Terminal Block

Name: 300V 20A Power Terminal Blocks Pitch 1000mm High Current Barrier Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR20-03

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block

Pitch : 10.00mm

Number Of Contacts : Any Poles Available

Wire Range : 24-12

Rated Voltage : 300V

Rated Current : 20A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

300V 20A Power Terminal Blocks , Pitch 10.00mm High Current Barrier Terminal Block

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

How to order:
300V 20A Power Terminal Blocks , Pitch 10.00mm High Current Barrier Terminal Block

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

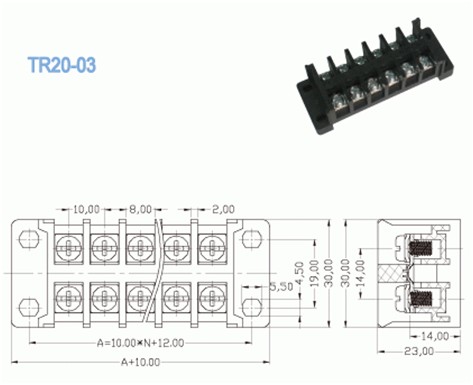

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 20	300 / 10
Wire Range AWG	24-12	24-12
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	400 /20	630 / 20	800 / 20
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	1.25
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	9-10
Screw Torque mm	M3.5 / 7-10

300V 20A Power Terminal Blocks , Pitch 10.00mm High Current Barrier Terminal Block

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
